Tessellation Editor Widget

The Tessellation Editor Widget is a control to add, remove, and edit tessellations.

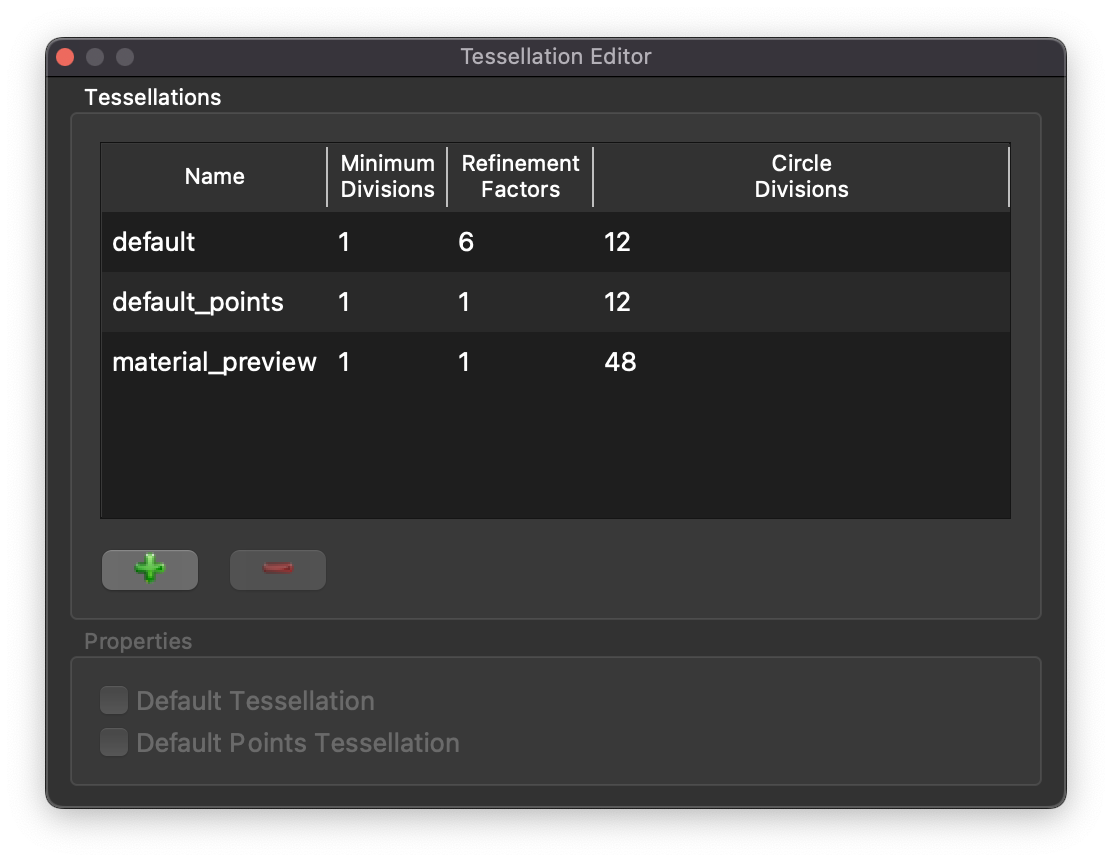

Tessellation editor widget.

Fig. 87 Tessellation editor widget.

The tessellation editor widget lists the currently defined tessellations. The tessellations are listed with their current settings. The button with the green cross adds a new tessellation and adds it to the list of tessellations. The button with the red minus removes a tessellation from the list of tessellations. The remove button is only enabled when a tessellation is activated (selected). The properties of a selected tessellation can also be set. The default tessellation and default points tessellation properties can be set on the currently selected tessellation.
